      <title>VMware Products Going EOL in 2025: The End of Year Rundown</title>
      <link>https://virtualg.uk/vmware-products-going-eol-in-2025-the-end-of-the-year-rundown/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-products-going-eol-in-2025-the-end-of-the-year-rundown/</guid>
      <pubDate>Mon, 15 Sep 2025 22:35:05 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[It’s time to review your VMware estate to ensure you’re not running on borrowed time. With 2025 underway, several VMware products are approaching their End of Life (EOL) or End of…]]></description>
      <content:encoded><![CDATA[<p>It’s time to review your VMware estate to ensure you’re not running on borrowed time. With 2025 underway, several VMware products are approaching their End of Life (EOL) or End of Support (EOS) milestones. EOL means no more updates, security patches, or official support from VMware by Broadcom, leaving unsupported versions vulnerable. Below is the updated list of products with EOS dates from September 15, 2025, to December 31, 2025, with all earlier dates removed.</p>



<p>This article provides a rundown of the VMware products and versions hitting EOS in the specified period, along with a summary table for quick reference.</p>



<p><strong>Update as of September 15, 2025:</strong> This article includes the latest product lifecycle details from VMware's official records, focusing on EOS dates between September 15, 2025, and December 31, 2025.</p>



<h2 class="wp-block-heading" id="Key_VMware_EOL_Dates_in_2025">Key VMware EOL Dates in 2025 <a class="hash" href="#Key_VMware_EOL_Dates_in_2025" aria-label="Link to this section"></a></h2>



<p>VMware’s lifecycle policies include a General Support phase (full updates and assistance) followed by a Technical Guidance phase (limited support). Once both are done, it’s EOS or EOL. Here are the key products reaching EOS from September 15, 2025, onward:</p>



<p class="has-small-font-size"><em>Although I manually checked all the data, some entries may be incorrect. Please always do your own checks.</em></p>



<h3 class="wp-block-heading" id="September_2025">September 2025 <a class="hash" href="#September_2025" aria-label="Link to this section"></a></h3>



<ul class="wp-block-list">
<li><strong>VMware vCenter Converter 6.6.0</strong>: EOS on September 22, 2025. This tool for converting physical machines to virtual ones reaches the end of its service life. </li>



<li><strong>vSphere Kubernetes releases VKr 1.30</strong>: EOS on September 28, 2025. Part of VMware's Kubernetes integrations; upgrade to VKr 1.31 or later to maintain support.</li>
</ul>



<h3 class="wp-block-heading" id="October_2025">October 2025 <a class="hash" href="#October_2025" aria-label="Link to this section"></a></h3>



<ul class="wp-block-list">
<li><strong>VMware vSphere 7.x (including ESXi, all editions: Scale-Out, Standard, Essentials Plus, Essentials, Enterprise Plus, Enterprise, Desktop)</strong>: EOS on October 2, 2025. Extended from April; this major virtualization platform, including vSAN-included variants, requires an upgrade to vSphere 8.x or later. Impacts many core infrastructure components.</li>



<li><strong>VMware vSAN 7.x</strong>: EOS on October 2, 2025. Aligns with vSphere 7.x; upgrade to 8.x to continue hyper-converged storage support.</li>



<li><strong>VMware Cloud Foundation 4.5.2</strong>: EOS on October 2, 2025. The SDDC stack needs migration to a newer release like 5.x or 9.x</li>



<li><strong>VMware NSX-T Data Center 3.2.x (all sub-versions: 3.2.0.1 to 3.2.3.2, 3.2.4, 3.2.4.1)</strong>: EOS on October 2, 2025. Networking and security platform; upgrade to 4.x series. Also affects integrations like Container Networking with Antrea, Tanzu Kubernetes Grid Integrated Edition, Telco Cloud Platform, vDefend Firewall, and vDefend Firewall with Advanced Threat Prevention.</li>



<li><strong>VMware vCenter Server 7.0 (all updates: 7.0.0 to 7.0U3p)</strong>: EOS on October 2, 2025. Migrate to 8.x.</li>



<li><strong>VMware NSX-T Data Center 3.2.4.2</strong>: EOS on October 4, 2025. Latest patch in the 3.2 series; same upgrade recommendations as above.</li>



<li><strong>VMware Site Recovery Manager 8.x (8.6.0 to 8.8.0.3, including patches)</strong>: EOS on October 11, 2025. Disaster recovery solution under VMware Live Recovery; upgrade to 9.x.</li>



<li><strong>VMware vSphere Replication 8.x (8.6.0 to 8.8.0.3, including patches)</strong>: EOS on October 11, 2025. Replication component; align with SRM upgrade.</li>



<li><strong>VMware Aria Operations 8.16.x and 8.17.x (8.16.0 to 8.17.2)</strong>: EOS on October 31, 2025. Monitoring and operations tool; affects VCF Automation, Operations, Aria Suite, Cloud Foundation, Telco Cloud Platform. Upgrade to 8.18+.</li>



<li><strong>VMware Aria Operations for Logs 8.16.x (8.16.0 to 8.16.1)</strong>: EOS on October 31, 2025. Log management; affects multiple suites. Upgrade to newer versions.</li>



<li><strong>VMware Cloud Provider Lifecycle Manager 1.6 and 1.7</strong>: EOS on October 19, 2025. Cloud provider management; plan for alternatives or newer tools.</li>



<li><strong>VMware Tools 11.2.x (11.2.0 to 11.2.6)</strong>: EOS on October 15, 2025. Guest OS optimization tools; update to newer releases bundled with vSphere 8+.</li>
</ul>



<h3 class="wp-block-heading" id="November_2025">November 2025 <a class="hash" href="#November_2025" aria-label="Link to this section"></a></h3>



<ul class="wp-block-list">
<li><strong>VMware vCloud Usage Meter 4.8</strong>: EOS on November 1, 2025. Usage tracking for cloud providers; upgrade to 4.9+.</li>



<li><strong>VMware Workstation Pro and Player 17.x (all sub-versions: 17.0.0 to 17.6.4, for Windows and Linux)</strong>: EOS on November 17, 2025. Desktop hypervisor; includes personal use editions. Upgrade to 18.x.</li>



<li><strong>VMware Fusion 13.x (all sub-versions: 13.0.0 to 13.6.4, for Intel and Apple silicon Macs)</strong>: EOS on November 17, 2025. Mac hypervisor; includes Pro for personal use. Upgrade to 14.x.</li>



<li><strong>VMware Telco Cloud Automation 3.0</strong>: EOS on November 30, 2025. Telco-specific automation; upgrade path to 4.x.</li>



<li><strong>VMware Bare Metal Automation for VMware Telco Cloud Platform 3.1.0</strong>: EOS on November 30, 2025. Bare metal provisioning; align with Telco Cloud updates.</li>



<li><strong>VMware Horizon 8 2206</strong>: EOS on November 30, 2025. Mid-cycle Horizon; aim for 2312 or later.</li>
</ul>



<h3 class="wp-block-heading" id="December_2025">December 2025 <a class="hash" href="#December_2025" aria-label="Link to this section"></a></h3>



<ul class="wp-block-list">
<li><strong>VMware HCX 4.11.x (4.11.1 and 4.11.2)</strong>: EOS on December 24, 2025. Hybrid cloud extension; upgrade to 4.12+.</li>



<li><strong>VMware Aria Automation Config 8.17.0</strong>: EOS on December 31, 2025. Configuration management (formerly SaltStack); affects Aria Suite, SaltStack, Tanzu Platform Services.</li>



<li><strong>VMware Bare Metal Automation for VMware Telco Cloud Platform 4.0</strong>: EOS on December 31, 2025. Latest bare metal tool; plan for 5.x.</li>



<li><strong>VMware Aria Operations for Logs 8.12</strong>: EOS on December 31, 2025. Ex-Log Insight; upgrade to 8.14+.</li>
</ul>



<h2 class="wp-block-heading" id="Summary_Table">Summary Table <a class="hash" href="#Summary_Table" aria-label="Link to this section"></a></h2>



<figure class="wp-block-table"><div class="table"><table class="has-fixed-layout"><thead><tr><th>Product</th><th>Version</th><th>EOS Date</th><th>Notes</th></tr></thead><tbody><tr><td>VMware vCenter Converter</td><td>6.6.0</td><td>Sep 22, 2025</td><td>Use modern migration tools.</td></tr><tr><td>vSphere Kubernetes releases</td><td>VKr 1.30</td><td>Sep 28, 2025</td><td>Upgrade to VKr 1.31+.</td></tr><tr><td>VMware vSphere</td><td>7.x</td><td>Oct 2, 2025</td><td>Upgrade to 8.x; includes all editions.</td></tr><tr><td>VMware vSAN</td><td>7.x</td><td>Oct 2, 2025</td><td>Align with vSphere upgrade.</td></tr><tr><td>VMware Cloud Foundation</td><td>4.5.2</td><td>Oct 2, 2025</td><td>Migrate to 5.x.</td></tr><tr><td>VMware NSX-T Data Center</td><td>3.2.x</td><td>Oct 2, 2025</td><td>Upgrade to 4.x; affects multiple integrations.</td></tr><tr><td>VMware vCenter Server</td><td>7.0.x</td><td>Oct 2, 2025</td><td>Upgrade to 8.x.</td></tr><tr><td>VMware NSX-T Data Center</td><td>3.2.4.2</td><td>Oct 4, 2025</td><td>Final 3.2 patch.</td></tr><tr><td>VMware Site Recovery Manager</td><td>8.x</td><td>Oct 11, 2025</td><td>Upgrade to 9.x.</td></tr><tr><td>VMware vSphere Replication</td><td>8.x</td><td>Oct 11, 2025</td><td>Align with SRM.</td></tr><tr><td>VMware Aria Operations</td><td>8.16/17.x</td><td>Oct 31, 2025</td><td>Upgrade to 8.18+.</td></tr><tr><td>VMware Aria Operations for Logs</td><td>8.16.x</td><td>Oct 31, 2025</td><td></td></tr><tr><td>VMware Cloud Provider Lifecycle Manager</td><td>1.6/1.7</td><td>Oct 19, 2025</td><td>Plan alternatives.</td></tr><tr><td>VMware Tools</td><td>11.2.x</td><td>Oct 15, 2025</td><td>Update via vSphere 8+.</td></tr><tr><td>VMware vCloud Usage Meter</td><td>4.8</td><td>Nov 1, 2025</td><td>Upgrade to 4.9+.</td></tr><tr><td>VMware Workstation Pro/Player</td><td>17.x</td><td>Nov 17, 2025</td><td>Upgrade to 18.x.</td></tr><tr><td>VMware Fusion</td><td>13.x</td><td>Nov 17, 2025</td><td>Upgrade to 14.x.</td></tr><tr><td>VMware Telco Cloud Automation</td><td>3.0</td><td>Nov 30, 2025</td><td>Upgrade to 4.x.</td></tr><tr><td>VMware Bare Metal Automation</td><td>3.1.0</td><td>Nov 30, 2025</td><td>Align with Telco updates.</td></tr><tr><td>VMware Horizon 8</td><td>2206</td><td>Nov 30, 2025</td><td>Upgrade to 2312+.</td></tr><tr><td>VMware HCX</td><td>4.11.x</td><td>Dec 24, 2025</td><td>Upgrade to 4.12+.</td></tr><tr><td>VMware Aria Automation Config</td><td>8.17.0</td><td>Dec 31, 2025</td><td></td></tr><tr><td>VMware Bare Metal Automation</td><td>4.0</td><td>Dec 31, 2025</td><td>Plan for 5.x.</td></tr><tr><td>VMware Aria Operations for Logs</td><td>8.12</td><td>Dec 31, 2025</td><td>Upgrade to 8.14+.</td></tr></tbody></table></div></figure>



<h2 class="wp-block-heading" id="VMware_Support_if_youre_out_of_support">VMware Support, if you're out of support? <a class="hash" href="#VMware_Support_if_youre_out_of_support" aria-label="Link to this section"></a></h2>



<p>If you're already out of support and need assistance, be sure to check out the <a href="https://community.broadcom.com/vmware-cloud-foundation/home" target="_blank" rel="noopener" title="Broadcom Community Forums">Broadcom Community Forums</a> for community support.</p>]]></content:encoded>
    </item>
    <item>
      <title>VMware’s 72-Core Licensing Shift: Turning a Challenge into an Opportunity for Small Businesses</title>
      <link>https://virtualg.uk/vmwares-72-core-licensing-shift-turning-a-challenge-into-an-opportunity-for-small-businesses/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmwares-72-core-licensing-shift-turning-a-challenge-into-an-opportunity-for-small-businesses/</guid>
      <pubDate>Thu, 03 Apr 2025 22:45:07 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[The virtualization scene is buzzing once again. VMware, now steered by Broadcom, has dropped a new licensing update. As of April 10, 2025, a minimum of 72 cores per product must…]]></description>
      <content:encoded><![CDATA[<p>The virtualization scene is buzzing once again. VMware, now steered by Broadcom, has dropped a new licensing update. As of April 10, 2025, <a href="https://virtualg.uk/vmwares-72-core-licensing-shift-what-it-means-for-users/" target="_blank" rel="noopener" title="a minimum of 72 cores per product">a minimum of 72 cores per product</a> must be licensed for initial purchases. Existing subscriptions and expansions? Unaffected, we think! For small businesses running ESXi or VMware Cloud Foundation (VCF) etc, this might sound like a bitter pill when planning new deployments. However, while there’s no dodging the 72-core requirement, it can be made more digestible - and even save money elsewhere. Let’s unpack how consolidation and clever clustering can turn this into a win.</p>



<h2 class="wp-block-heading" id="The_New_Rule_72_Cores_No_Exceptions">The New Rule: 72 Cores, No Exceptions <a class="hash" href="#The_New_Rule_72_Cores_No_Exceptions" aria-label="Link to this section"></a></h2>



<p>First, let’s get the lay of the land. Previously, VMware’s licensing was tied to a per-CPU model with a 16-core minimum. Now, new product purchases demand a 72-core license. We think expansions and current setups aren’t touched, so your existing ESXi hosts keep their old terms. But for fresh deployments - say, a new cluster - you’re locked into 72 cores, even if your server’s only use 32. There’s no workaround; it’s 72 or nothing.</p>



<p>Yet, this doesn’t have to be a pure cost sink. By rethinking your approach, savings can be found in other areas. Consolidation and strategic clustering offer ways to soften the blow and maximize value.</p>



<h2 class="wp-block-heading" id="Consolidation_Slash_Overhead_Max_Out_Licenses">Consolidation: Slash Overhead, Max Out Licenses <a class="hash" href="#Consolidation_Slash_Overhead_Max_Out_Licenses" aria-label="Link to this section"></a></h2>



<p>One solid tactic is consolidating to offset the 72-core hit. Since new purchases force you into 72 cores, why not bring scattered resources into a single, beefy cluster? For small businesses, this could mean pulling in dev systems or subscription-based storage that’s bleeding cash elsewhere.</p>



<p>Imagine you’ve got a dev environment on a separate 16-core box and a subscription SAN costing £2,000 yearly. A new 72-core-licensed cluster—say, a dual-CPU server with 36 cores each—could absorb both. By migrating dev VMs and using vSAN (bundled with VCF), that SAN subscription gets axed. The license fee covers 72 cores you’re now actually using. You might even save on power and maintenance costs with one less system to manage.</p>



<p>However, it’s not plug-and-play. Check your workloads—dev VMs might need isolating?. VMware’s vSphere Client and Aria Operations can test resource allocation before you leap.</p>



<h2 class="wp-block-heading" id="Cluster_Smarter_Subdivisions_Under_One_Roof">Cluster Smarter: Subdivisions Under One Roof <a class="hash" href="#Cluster_Smarter_Subdivisions_Under_One_Roof" aria-label="Link to this section"></a></h2>



<p>Another angle is clustering subdivisions together. If two new clusters were planned under different agreements — say, one for production and one for testing — don’t license them separately. Each could demand 72 cores, totaling 144 cores licensed. Instead, build one slightly larger cluster to handle both.</p>



<p>For example, a single cluster with 80 cores total could run both workloads. Use vSphere’s resource pools to split production and test VMs logically. You’re still licensing 80 cores , but now you’re supporting two use cases with headroom. Two separate clusters may have left capacity idle for overhead and N+1 for patching and maintenance. Here, your budget gets stretched further, and server utilization soars.</p>



<h2 class="wp-block-heading" id="Scale_Smart_Extend_Existing_Clusters">Scale Smart: Extend Existing Clusters <a class="hash" href="#Scale_Smart_Extend_Existing_Clusters" aria-label="Link to this section"></a></h2>



<p>Another approach might be scaling existing clusters instead of starting new ones. Since expansions seem to sidestep the 72-core rule, your current setup can be stretched to meet new demands. For instance, a 32-core ESXi cluster with headroom could host additional VMs—say, for testing—using resource pools and think "multi-tenancy" if needed. This keeps workloads separate without triggering a new 72-core license. Costs like a  new license could get avoided entirely and your existing hardware works harder. Just ensure resources hold—vSphere Client and Aria Operations can flag limits before you overcommit.</p>



<h2 class="wp-block-heading" id="Optimization_Sweeten_the_Deal">Optimization: Sweeten the Deal <a class="hash" href="#Optimization_Sweeten_the_Deal" aria-label="Link to this section"></a></h2>



<p>Since 72 cores are non-negotiable, optimization can ease the sting. With VCF, vSAN and NSX come baked in. For a new cluster, these can replace costly standalone solutions. NSX could tighten security, ditching a costly firewall subscription. vSAN might cut storage overheads further. Because you’re paying for 72 cores anyway, these extras are "freebies" — your existing setup stays lean, while new deployments gain muscle.</p>



<p>Yet, hardware must keep up. A 32-core server won’t magically handle 72-core demands. Spec a new rig — to match the license and workload.</p>



<h2 class="wp-block-heading" id="Practical_Steps_to_Start">Practical Steps to Start <a class="hash" href="#Practical_Steps_to_Start" aria-label="Link to this section"></a></h2>



<p>So, how’s it done? First, audit your setup. List existing gear (untouched) and pinpoint new needs. Next, identify consolidation targets—dev boxes, subscriptions, or subdivisions. Price up dual 36 or 40-core CPUs and compare to current overheads.<br>Then, test. Spin up VMs, simulate workloads, and monitor with vSphere Client. Because a rushed job could disrupt ops. Budget upfront costs too.</p>



<h2 class="wp-block-heading" id="The_Bigger_Picture">The Bigger Picture <a class="hash" href="#The_Bigger_Picture" aria-label="Link to this section"></a></h2>



<p>Broadcom’s 72-core rule is rigid for new buys. Small businesses can’t dodge it, but existing setups and expansions are safe. By consolidating and clustering smartly, try to make that license become an asset, not a burden. Overheads can shrink, and new deployments can perform better.</p>



<h2 class="wp-block-heading" id="Wrapping_Up">Wrapping Up <a class="hash" href="#Wrapping_Up" aria-label="Link to this section"></a></h2>



<p>Broadcom's 72-core licensing, effective April 10, 2025, has small businesses rethinking strategies. But it’s not all bad news. Consolidation, optimization, and CPU upgrades can turn this into a win. So, audit your gear, run the numbers, and make the most of those 72 cores. Also be sure to confirm your plans will work with your reseller before committing to anything.<br><br>What do you think? There is not much we can do about the licensing situation, but is it worth evaluating all your IT and seeing if you can turn this into an opportunity? </p>



<p>For more virtualization tips consider <a href="https://virtualg.uk/subscribe/" title="Subscribe">subscribing</a>:</p>]]></content:encoded>
    </item>
    <item>
      <title>VMware Products Going EOL in 2025: The Full-Year Rundown</title>
      <link>https://virtualg.uk/vmware-products-going-eol-in-2025-the-full-year-rundown/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-products-going-eol-in-2025-the-full-year-rundown/</guid>
      <pubDate>Tue, 04 Mar 2025 23:58:04 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[It’s that time again - time to check your VMware estate and make sure you’re not running on borrowed time. With 2025 in full swing, several VMware products are hitting their End…]]></description>
      <content:encoded><![CDATA[<p>It’s that time again - time to check your VMware estate and make sure you’re not running on borrowed time. With 2025 in full swing, several <a href="https://www.vmware.com/products" target="_blank" rel="noopener" title="VMware products">VMware products</a> are hitting their End of Life (EOL) or End of Support (EOS) milestones this year. For those unfamiliar, EOL means no more updates, no more security patches, and no more official support from VMware by Broadcom. In other words, if you’re still running these versions, you’re on your own and that’s a risky place to be in today’s security landscape.</p>



<p>This year, we’ve got a mix of products and versions reaching the end of their lifecycle, from virtualization staples to Tanzu-related offerings. Whether you’re an IT admin, a virtualization enthusiast, or just someone who likes to keep their infrastructure humming, here’s what’s on the chopping block in 2025. Plus, I’ve thrown in a handy table to summarize it all.</p>



<h1 class="wp-block-heading">Key VMware EOL Dates in 2025</h1>



<p>VMware’s lifecycle policies typically include a General Support phase (full updates and assistance) followed by a Technical Guidance phase (limited support, mostly self-help). Once both are done, it’s game over—EOS or EOL. Here are the big ones to watch in 2025:</p>



<h2 class="wp-block-heading" id="VMware_Data_Services_Manager">VMware Data Services Manager <a class="hash" href="#VMware_Data_Services_Manager" aria-label="Link to this section"></a></h2>



<p>First up, VMware Data Services Manager 2.0.3 kicked off the EOL party on February 3, 2025. If you’re using this to wrangle data services in your VMware environment, you’re already cutting it close. No more support or patches after this date, so start eyeing a newer version pronto—February’s not messing around.</p>



<h2 class="wp-block-heading" id="VMware_Tanzu_Data_Services_Pack_Data_Suite_v203">VMware Tanzu Data Services Pack &amp; Data Suite (v2.0.3) <a class="hash" href="#VMware_Tanzu_Data_Services_Pack_Data_Suite_v203" aria-label="Link to this section"></a></h2>



<p>Next, VMware Tanzu Data Services Pack 2.0.3 also bit the dust on February 3, 2025. Tanzu fans, this one’s part of your data management toolkit, and it’s joining the early-year EOL club. You’ve got less than a month if you’re reading this fresh—don’t sleep on it.<br><br>Rounding out the February trio, VMware Tanzu Data Suite 2.0.3 hit EOL on February 3, 2025, too. Another Tanzu data player, this one’s exit means you’ll need to hustle to a supported release if you’re still running it. Three strikes in one day—February’s ruthless!</p>



<h2 class="wp-block-heading" id="VMware_Aria_Automation_811x">VMware Aria Automation (8.11.x) <a class="hash" href="#VMware_Aria_Automation_811x" aria-label="Link to this section"></a></h2>



<p>Fast forward to March, and VMware Aria Automation 8.11.x (the artist formerly known as vRealize Automation) reaches EOS on March 31, 2025. This automation workhorse needs an upgrade to 8.13+ to keep the lights on—plenty of time to plan, but don’t dawdle.</p>



<h2 class="wp-block-heading" id="VMware_Aria_Operations">VMware Aria Operations <a class="hash" href="#VMware_Aria_Operations" aria-label="Link to this section"></a></h2>



<p>Also on the March chopping block, VMware Aria Operations 8.10.x (ex-vRealize Operations) sees its EOS on March 31, 2025. If you’re monitoring your VMware world with this, aim for 8.12+ to stay in the game. Spring cleaning’s coming early.</p>



<h2 class="wp-block-heading" id="VMware_Aria_Suite_Lifecycle">VMware Aria Suite Lifecycle <a class="hash" href="#VMware_Aria_Suite_Lifecycle" aria-label="Link to this section"></a></h2>



<p>Keeping the March 31, 2025, theme, VMware Aria Suite Lifecycle 8.11.x hits EOS alongside its siblings. This one manages your Aria/vRealize deployments, so sync it up with newer versions to avoid a lifecycle management limbo.</p>



<h2 class="wp-block-heading" id="VMware_Telco_Cloud_Automation_23">VMware Telco Cloud Automation (2.3) <a class="hash" href="#VMware_Telco_Cloud_Automation_23" aria-label="Link to this section"></a></h2>



<p>Still in March, VMware Telco Cloud Automation 2.3 wraps its support run on March 31, 2025. Telco folks, this automation tool’s upgrade path from 2.0 hops through 2.1 and 2.2—plan carefully, especially since 2.1’s got its own EOL later this year.</p>



<h2 class="wp-block-heading" id="VMware_vRealize_Network_Insight">VMware vRealize Network Insight <a class="hash" href="#VMware_vRealize_Network_Insight" aria-label="Link to this section"></a></h2>



<p>Another March 31, 2025, casualty, VMware vRealize Network Insight 6.8 goes EOS. This network visibility gem’s been superseded by newer Aria-branded releases—time to migrate if you’re still peering through this lens.</p>



<h2 class="wp-block-heading" id="VMware_vRealize_Log_Insight">VMware vRealize Log Insight <a class="hash" href="#VMware_vRealize_Log_Insight" aria-label="Link to this section"></a></h2>



<p>Logs get the axe too, with VMware vRealize Log Insight 8.10.x hitting EOS on March 31, 2025. Superseded by Aria Operations for Logs, this one’s got a clear upgrade path—don’t let your log management go silent.</p>



<h2 class="wp-block-heading" id="VMware_Horizon_8_DEM">VMware Horizon 8 (DEM) <a class="hash" href="#VMware_Horizon_8_DEM" aria-label="Link to this section"></a></h2>



<p>Horizon fans, VMware Horizon 8 Dynamic Environment Manager 2111 ends support on March 31, 2025. Part of the Horizon 8 2111 suite, this user environment tool needs a newer home—keep it tied to a supported Horizon release.</p>



<h2 class="wp-block-heading" id="VMware_Horizon_8_App_Volumes">VMware Horizon 8 (App Volumes) <a class="hash" href="#VMware_Horizon_8_App_Volumes" aria-label="Link to this section"></a></h2>



<p>Same deal for VMware Horizon 8 App Volumes 2111, going EOS on March 31, 2025. This app delivery piece is another chunk of the 2111 suite—bundle your upgrade plans to stay smooth.</p>



<h2 class="wp-block-heading" id="VMware_Horizon_8_ThinApp">VMware Horizon 8 (ThinApp) <a class="hash" href="#VMware_Horizon_8_ThinApp" aria-label="Link to this section"></a></h2>



<p>Completing the Horizon 2111 trifecta, VMware Horizon 8 ThinApp 2111 also hits EOS on March 31, 2025. App virtualization’s still kicking, but not on this version—shift to a newer Horizon build.</p>



<h2 class="wp-block-heading" id="VMware_NSX-T_Data_Center">VMware NSX-T Data Center <a class="hash" href="#VMware_NSX-T_Data_Center" aria-label="Link to this section"></a></h2>



<p>Networking’s not spared, as VMware NSX-T Data Center 3.1.x reaches EOS on March 31, 2025. Time to jump to 3.2.x or 4.x if you’re still virtualizing your network with this release.</p>



<h2 class="wp-block-heading" id="VMware_Site_Recovery_Manager">VMware Site Recovery Manager <a class="hash" href="#VMware_Site_Recovery_Manager" aria-label="Link to this section"></a></h2>



<p>Disaster recovery takes a hit with VMware Site Recovery Manager 8.6.x going EOS on March 31, 2025. Align this with a newer vSphere-compatible version to keep your DR plans intact.</p>



<h2 class="wp-block-heading" id="VMware_vCloud_Usage_Meter">VMware vCloud Usage Meter <a class="hash" href="#VMware_vCloud_Usage_Meter" aria-label="Link to this section"></a></h2>



<p>Service providers, VMware vCloud Usage Meter 4.6 stops counting on March 31, 2025. Usage tracking successors are out there—don’t let this one leave you guessing.</p>



<h2 class="wp-block-heading" id="VMware_Tanzu_Kubernetes_Grid_Integrated">VMware Tanzu Kubernetes Grid Integrated <a class="hash" href="#VMware_Tanzu_Kubernetes_Grid_Integrated" aria-label="Link to this section"></a></h2>



<p>Kubernetes fans, VMware Tanzu Kubernetes Grid Integrated 1.13.x hits EOS on March 31, 2025. Older TKG needs a lift to newer Tanzu releases—keep those clusters humming.</p>



<h2 class="wp-block-heading" id="VMware_vRealize_Business_for_Cloud">VMware vRealize Business for Cloud <a class="hash" href="#VMware_vRealize_Business_for_Cloud" aria-label="Link to this section"></a></h2>



<p>Cost management’s out too, with VMware vRealize Business for Cloud 7.6 going EOS on March 31, 2025. Replaced by Aria Cost offerings, this one’s a relic worth retiring.</p>



<h2 class="wp-block-heading" id="VMware_Aria_Automation_8121">VMware Aria Automation (8.12.1) <a class="hash" href="#VMware_Aria_Automation_8121" aria-label="Link to this section"></a></h2>



<p>Jumping to May, VMware Aria Automation 8.12.1 reaches EOS on May 23, 2025. A mid-year cutoff for this automation tool—8.13.x is your next stop to stay supported.</p>



<h2 class="wp-block-heading" id="VMware_Telco_Cloud_Automation_21">VMware Telco Cloud Automation (2.1) <a class="hash" href="#VMware_Telco_Cloud_Automation_21" aria-label="Link to this section"></a></h2>



<p>Mid-summer brings VMware Telco Cloud Automation 2.1 to its EOS on July 31, 2025. Another Telco step (preceding 2.3’s March exit)—hop to 2.2, then 2.3, but watch those overlapping deadlines.</p>



<h2 class="wp-block-heading" id="VMware_vSphere">VMware vSphere <a class="hash" href="#VMware_vSphere" aria-label="Link to this section"></a></h2>



<p>The big one lands in fall: VMware vSphere 7.x (including ESXi and vCenter) hits EOS on October 2, 2025. Extended from April, this gives you decent runway to hit 8.x—don’t miss it, it’s the backbone of many a setup.</p>



<h2 class="wp-block-heading" id="VMware_vSAN">VMware vSAN <a class="hash" href="#VMware_vSAN" aria-label="Link to this section"></a></h2>



<p>Tied to vSphere, <a href="https://virtualg.uk/tag/vsan/" title="vSAN">VMware vSAN</a> 7.x also goes EOS on October 2, 2025. Same deal—upgrade to 8.x alongside your vSphere move to keep your storage virtualized and safe.</p>



<h2 class="wp-block-heading" id="VMware_Horizon_8_2206">VMware Horizon 8 (2206) <a class="hash" href="#VMware_Horizon_8_2206" aria-label="Link to this section"></a></h2>



<p>Late in the year, VMware Horizon 8 2206 reaches EOS on November 30, 2025. A mid-cycle Horizon release—aim for 2312 or later to keep your VDI rolling.</p>



<h2 class="wp-block-heading" id="VMware_Aria_Operations_for_Logs">VMware Aria Operations for Logs <a class="hash" href="#VMware_Aria_Operations_for_Logs" aria-label="Link to this section"></a></h2>



<p>Finally, VMware Aria Operations for Logs 8.12 (ex-Log Insight) closes out 2025 with an EOS on December 31, 2025. Upgrade to 8.14+ to log into 2026 with support intact.</p>



<h1 class="wp-block-heading">Full-Year 2025 EOL/EOS Table</h1>



<figure class="wp-block-table"><div class="table"><table class="has-fixed-layout"><tbody><tr><th>Product</th><th>Version</th><th>EOL/EOS Date</th><th>Notes</th></tr><tr><td>VMware Data Services Manager</td><td>2.0.3</td><td>February 3, 2025</td><td>Upgrade to a supported version now!</td></tr><tr><td>VMware Tanzu Data Services Pack</td><td>2.0.3</td><td>February 3, 2025</td><td>Tanzu data tool; act fast.</td></tr><tr><td>VMware Tanzu Data Suite</td><td>2.0.3</td><td>February 3, 2025</td><td>Another Tanzu EOL; February’s busy.</td></tr><tr><td>VMware Aria Automation</td><td>8.11.x</td><td>March 31, 2025</td><td>Ex-vRealize Automation; go to 8.13+.</td></tr><tr><td>VMware Aria Operations</td><td>8.10.x</td><td>March 31, 2025</td><td>Ex-vRealize Operations; aim for 8.12+.</td></tr><tr><td>VMware Aria Suite Lifecycle</td><td>8.11.x</td><td>March 31, 2025</td><td>Lifecycle manager; align with newer Aria.</td></tr><tr><td>VMware Telco Cloud Automation</td><td>2.3</td><td>March 31, 2025</td><td>Telco tool; upgrade from 2.0 via 2.1, 2.2.</td></tr><tr><td>VMware vRealize Network Insight</td><td>6.8</td><td>March 31, 2025</td><td>Network visibility; newer Aria awaits.</td></tr><tr><td>VMware vRealize Log Insight</td><td>8.10.x</td><td>March 31, 2025</td><td>Log tool; superseded by Aria Operations.</td></tr><tr><td>VMware Horizon 8 (DEM)</td><td>2111</td><td>March 31, 2025</td><td>Dynamic Environment Manager; tied to 2111.</td></tr><tr><td>VMware Horizon 8 (App Volumes)</td><td>2111</td><td>March 31, 2025</td><td>App delivery; part of Horizon 8 2111.</td></tr><tr><td>VMware Horizon 8 (ThinApp)</td><td>2111</td><td>March 31, 2025</td><td>App virtualization; Horizon 8 2111 suite.</td></tr><tr><td>VMware NSX-T Data Center</td><td>3.1.x</td><td>March 31, 2025</td><td>Networking; move to 3.2.x or 4.x.</td></tr><tr><td>VMware Site Recovery Manager</td><td>8.6.x</td><td>March 31, 2025</td><td>DR tool; align with newer vSphere releases.</td></tr><tr><td>VMware vCloud Usage Meter</td><td>4.6</td><td>March 31, 2025</td><td>Usage tracking; successors available.</td></tr><tr><td>VMware Tanzu Kubernetes Grid Integrated</td><td>1.13.x</td><td>March 31, 2025</td><td>Older TKG; newer Tanzu releases beckon.</td></tr><tr><td>VMware vRealize Business for Cloud</td><td>7.6</td><td>March 31, 2025</td><td>Cost management; replaced by Aria Cost.</td></tr><tr><td>VMware Aria Automation</td><td>8.12.1</td><td>May 23, 2025</td><td>Mid-year cutoff; 8.13.x is your next step.</td></tr><tr><td>VMware Telco Cloud Automation</td><td>2.1</td><td>July 31, 2025</td><td>Telco automation; hop to 2.2 then 2.3.</td></tr><tr><td>VMware vSphere</td><td>7.x</td><td>October 2, 2025</td><td>Extended from April; includes ESXi/vCenter.</td></tr><tr><td>VMware vSAN</td><td>7.x</td><td>October 2, 2025</td><td>Aligns with vSphere 7.x; upgrade to 8.x.</td></tr><tr><td>VMware Horizon 8</td><td>2206</td><td>November 30, 2025</td><td>Mid-cycle Horizon; aim for 2312 or later.</td></tr><tr><td>VMware Aria Operations for Logs</td><td>8.12</td><td>December 31, 2025</td><td>Ex-Log Insight; 8.14+ keeps you supported.</td></tr></tbody></table></div></figure>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2025/03/Scifi-4916165_1280.jpg" alt="" class="wp-image-24274" loading="eager" decoding="async"><figcaption class="wp-element-caption">#image_title</figcaption></figure>



<h2 class="wp-block-heading" id="Final_Thoughts"><br>Final Thoughts <a class="hash" href="#Final_Thoughts" aria-label="Link to this section"></a></h2>



<p>2025 is shaping up to be a pivotal year for VMware users. The vSphere 7.x extension is a nice reprieve, but those deadlines are looming large. Don’t sleep on this - start planning now to keep your virtual world spinning smoothly. Got questions or a specific VMware EOL concern? Drop a comment below or reach out on X.com.<br></p>
<p>If you've enjoyed this article, consider <a href="https://virtualg.uk/subscribe/">subscribing to my newsletter</a> for more similar content.</p>]]></content:encoded>
    </item>
    <item>
      <title>VMware Cloud Foundation 9 – What’s New?</title>
      <link>https://virtualg.uk/vmware-cloud-foundation-9-whats-new/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-cloud-foundation-9-whats-new/</guid>
      <pubDate>Sat, 14 Sep 2024 16:16:27 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[Exploring the Innovations in VMware Cloud Foundation 9 # VMware (now Broadcom, of course) has once again pushed the boundaries with the introduction of VMware Cloud Foundation…]]></description>
      <content:encoded><![CDATA[<h2 class="wp-block-heading" id="Exploring_the_Innovations_in_VMware_Cloud_Foundation_9">Exploring the Innovations in VMware Cloud Foundation 9 <a class="hash" href="#Exploring_the_Innovations_in_VMware_Cloud_Foundation_9" aria-label="Link to this section"></a></h2>

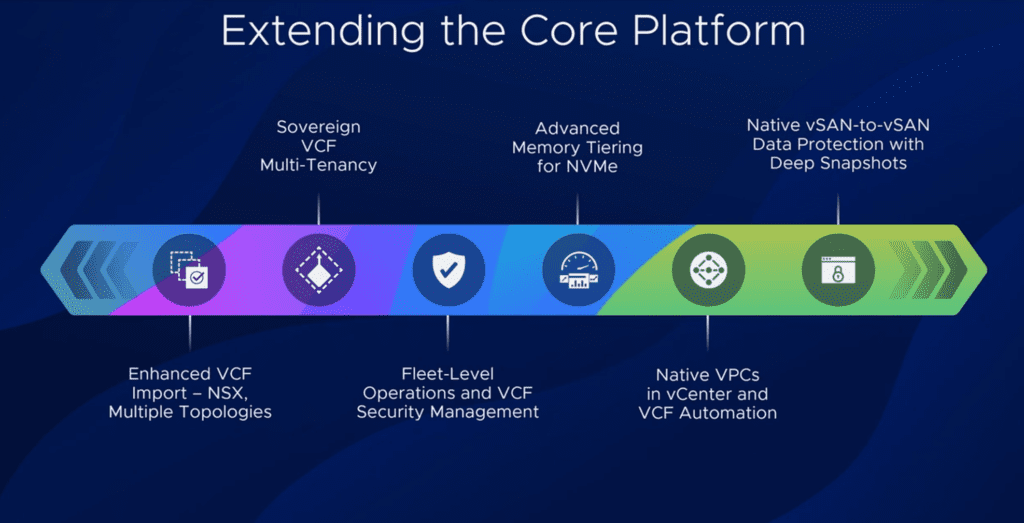

<p>VMware (now Broadcom, of course) has once again pushed the boundaries with the introduction of VMware Cloud Foundation (VCF) 9. This iteration is not just an update; it's a transformative platform designed to streamline the deployment, consumption, and management of modern private clouds. Here's an in-depth look at what makes VCF 9 a pivotal advancement:</p>



<h2 class="wp-block-heading" id="A_Unified_Management_Experience">A Unified Management Experience <a class="hash" href="#A_Unified_Management_Experience" aria-label="Link to this section"></a></h2>

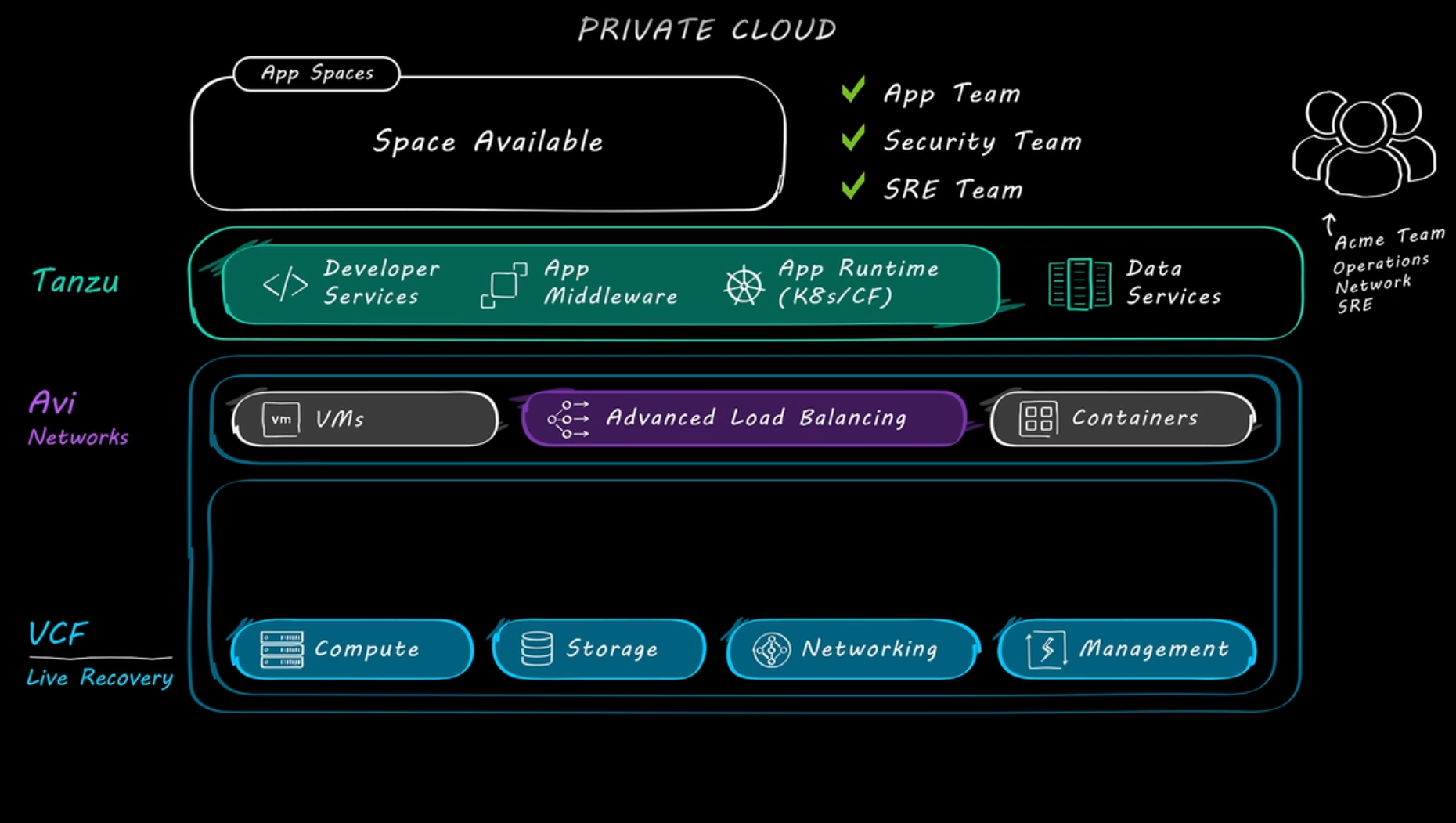

<p>One of the standout features of VCF 9 is its unified management console. This central hub simplifies IT operations by allowing administrators to:</p>



<ul class="wp-block-list">
<li><strong>Monitor and Manage Capacity</strong>: With real-time analytics, admins can foresee capacity needs, making resource allocation more efficient.</li>



<li><strong>Configure Governance Policies</strong>: Centralized policy management ensures compliance and security standards are uniformly applied across the infrastructure.</li>



<li><strong>Comprehensive Security Dashboard</strong>: This provides a holistic view of the security posture, enabling quick responses to potential threats.</li>
</ul>



<p>This unified approach reduces complexity, thereby enhancing operational efficiency and reducing the time spent on routine management tasks.</p>



<figure class="wp-block-image size-full"><img src="https://virtualg.uk/wp-content/uploads/2024/09/image.png" alt="" class="wp-image-20410" loading="eager" decoding="async"><figcaption class="wp-element-caption"><a href="https://blogs.vmware.com/cloud-foundation/2024/08/27/vmware-cloud-foundation-9/">Introducing VMware Cloud Foundation 9 - VMware Cloud Foundation (VCF) Blog</a></figcaption></figure>



<h2 class="wp-block-heading" id="Compute_Improvements_in_VCF_9">Compute Improvements in VCF 9 <a class="hash" href="#Compute_Improvements_in_VCF_9" aria-label="Link to this section"></a></h2>



<p><strong>Advanced Memory Tiering with NVMe:</strong> This feature enhances memory management by relocating less frequently accessed data to NVMe storage, while frequently accessed data remains in DRAM. This leads to a 40% improvement in server consolidation, allowing companies to operate more workloads on fewer servers.</p>



<p><strong>Confidential Computing with TDX:</strong> Offers heightened security by segregating and encrypting workloads, thus maintaining data integrity and confidentiality at the hypervisor level.</p>



<p><strong>vSphere Kubernetes Service Enhancements: </strong>VCF will now natively support Windows containers, provide direct network connectivity via VPC, and offer native OVF support, thereby increasing the flexibility and scalability of containerized applications.</p>



<h2 class="wp-block-heading" id="Network_Improvements_in_VCF_9">Network Improvements in VCF 9 <a class="hash" href="#Network_Improvements_in_VCF_9" aria-label="Link to this section"></a></h2>



<p><strong>Native VPCs in vCenter and VMware Cloud Foundation Automation</strong>: Greatly simplify the setup and management of secure, isolated networks, cutting down on the complexity and time usually needed to create virtual networks.</p>



<p><strong>High-Performance Network Switching</strong>: Is realized via NSX Enhanced Data Path, which offers up to triple the switching performance, catering to the needs of modern, data-heavy applications and reducing network latency.</p>



<p><strong>The shift from VLAN to VPC</strong>: Is streamlined, providing an easy migration route from traditional VLAN-based networks to the more sophisticated VPCs, easing network management and bolstering security measures.</p>



<h2 class="wp-block-heading" id="Storage_Improvements_in_VCF_9">Storage Improvements in VCF 9 <a class="hash" href="#Storage_Improvements_in_VCF_9" aria-label="Link to this section"></a></h2>



<p><strong>Native vSAN-to-vSAN Data Protection</strong>: Featuring Deep Snapshots enables near-instant data recovery with 1-minute Recovery Point Objectives (RPOs), ensuring strong disaster recovery and data resilience.</p>



<p><strong>Integrated vSAN Global Deduplication</strong>: Significantly cuts storage costs by 46% per terabyte in comparison to conventional solutions, leveraging efficient data deduplication across clusters.</p>



<p><strong>vSAN ESA Stretched Site Recovery: </strong>Guarantees business continuity by preserving operations and data availability, even amidst dual-site failures, with its stretched cluster architecture that supports essential applications.</p>



<h2 class="wp-block-heading" id="Enhanced_Support_for_Modern_Applications">Enhanced Support for Modern Applications <a class="hash" href="#Enhanced_Support_for_Modern_Applications" aria-label="Link to this section"></a></h2>



<p>VCF 9 has made significant strides in supporting modern application development:</p>



<ul class="wp-block-list">
<li><strong>vSphere Kubernetes Service Enhancements</strong>: Now includes support for Windows containers, which broadens the scope for developers working in mixed environments. The addition of direct network connectivity through VPCs and native OVF support means applications can be deployed with greater flexibility and scalability.</li>



<li><strong>Native VPCs in vCenter</strong>: This feature allows for the creation of isolated environments within the vCenter, simplifying network management and enhancing security by segregating different workloads or tenants.</li>
</ul>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2024/09/image-1.png" alt="" class="wp-image-20415" loading="lazy" decoding="async"><figcaption class="wp-element-caption"><a href="https://www.vmware.com/explore/video-library/video/6360758181112">Shaping the Future of Cloud and AI Innovation (vmware.com)</a></figcaption></figure>



<h2 class="wp-block-heading" id="Advanced_Data_Services_Management">Advanced Data Services Management <a class="hash" href="#Advanced_Data_Services_Management" aria-label="Link to this section"></a></h2>



<p>Data management gets a boost in VCF 9:</p>



<ul class="wp-block-list">
<li><strong>VMware Data Services Manager</strong>: This tool provides a robust platform for managing both traditional and modern data services. It offers insights into data path optimization and resource utilization, crucial for performance tuning and compliance.</li>



<li><strong>Support for Open-Source Data Services</strong>: Recognizing the trend towards open-source, VCF 9 facilitates the integration of various data services, enhancing flexibility for businesses leaning towards diverse database solutions.</li>
</ul>



<h2 class="wp-block-heading" id="Simplified_Onboarding_and_Operations">Simplified Onboarding and Operations <a class="hash" href="#Simplified_Onboarding_and_Operations" aria-label="Link to this section"></a></h2>



<ul class="wp-block-list">
<li><strong>VCF Import</strong>: This feature is a game-changer for organizations with existing vSphere and vSAN environments. It allows for a seamless transition into the VCF ecosystem, modernizing infrastructure without the need for a complete overhaul, thus preserving existing investments while upgrading capabilities.</li>



<li><strong>Diagnostics and Application Topology</strong>: Enhanced diagnostic tools and application topology visualization aid in quicker troubleshooting and understanding application dependencies, which is vital for maintaining optimal performance.</li>
</ul>



<h2 class="wp-block-heading" id="The_Future_of_Private_AI_with_VCF_9">The Future of Private AI with VCF 9 <a class="hash" href="#The_Future_of_Private_AI_with_VCF_9" aria-label="Link to this section"></a></h2>



<p>This capability positions VCF 9 as a foundational platform for businesses looking to leverage Private AI. By providing an infrastructure that supports high-performance computing needs with simplicity in deployment, VCF 9 could become pivotal for enterprises venturing into AI-driven operations.</p>



<h2 class="wp-block-heading" id="Security_and_Resilience_Enhancements">Security and Resilience Enhancements <a class="hash" href="#Security_and_Resilience_Enhancements" aria-label="Link to this section"></a></h2>



<p>Security remains paramount in VCF 9:</p>



<ul class="wp-block-list">
<li><strong>Live Patching for ESXi</strong>: This allows for critical patches to be applied without downtime, ensuring security without interrupting business operations.</li>



<li><strong>Flexible Component Upgrades</strong>: Organizations can now upgrade components at their pace, choosing when to apply the latest patches, which aligns with individual security policies and maintenance windows.</li>
</ul>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2024/09/image.png" alt="" class="wp-image-20414" loading="lazy" decoding="async"><figcaption class="wp-element-caption"><a href="https://www.vmware.com/explore/video-library/video/6360758181112">Shaping the Future of Cloud and AI Innovation (vmware.com)</a></figcaption></figure>



<h2 class="wp-block-heading" id="Operational_Efficiency_and_Cost_Management">Operational Efficiency and Cost Management <a class="hash" href="#Operational_Efficiency_and_Cost_Management" aria-label="Link to this section"></a></h2>



<p>VCF 9 not only focuses on technological advancements but also on operational efficiency:</p>



<ul class="wp-block-list">
<li><strong>Cost Optimization</strong>: Through continuous performance monitoring and resource management, IT teams can better optimize costs, ensuring that the infrastructure runs at peak efficiency without unnecessary expenditure.</li>



<li><strong>Unified Firewall Configuration</strong>: Simplifies network security management across the cloud environment, reducing the potential for configuration errors.</li>
</ul>



<h2 class="wp-block-heading" id="The_Path_Forward_with_VCF_9">The Path Forward with VCF 9 <a class="hash" href="#The_Path_Forward_with_VCF_9" aria-label="Link to this section"></a></h2>



<p>VMware Cloud Foundation 9 stands out as a holistic solution for businesses aiming to modernize their IT infrastructure. By addressing the complexities of modern application deployment, enhancing data management capabilities, and fortifying security, VCF 9 serves as a bridge between traditional IT environments and the demands of modern digital business strategies.</p>



<p>The introduction of features like native VPC support, enhanced Kubernetes services, and improved diagnostics tools not only cater to the current needs but also anticipate future requirements of cloud infrastructure. This forward-thinking approach makes VCF 9 not just a product but a strategic partner in an organization's journey towards digital transformation.</p>



<p>For enterprises looking to remain competitive, secure, and agile in a cloud-centric world, VMware Cloud Foundation 9 offers the tools and flexibility needed to navigate the future of IT infrastructure effectively. Whether it's through simplifying AI deployments, ensuring high availability, or providing a seamless path for legacy system integration, VCF 9 is indeed setting the stage for the next generation of private cloud environments.</p>]]></content:encoded>
    </item>
    <item>
      <title>VMware vSAN ESA – Book review</title>
      <link>https://virtualg.uk/vmware-vsan-esa-book-review/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-vsan-esa-book-review/</guid>
      <pubDate>Sat, 17 Feb 2024 19:03:15 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[In the ever-evolving landscape of virtualization and storage technologies, VMware's vSAN Express Storage Architecture (ESA) emerges as a revolutionary solution, promising a unique…]]></description>
      <content:encoded><![CDATA[<p>In the ever-evolving landscape of virtualization and storage technologies, VMware's vSAN Express Storage Architecture (ESA) emerges as a revolutionary solution, promising a unique approach to storage that combines efficiency, simplicity, and scalability. </p>



<p>However, vSAN ESA is different from the traditional vSAN (OSA)which we have become familiar with since 2014. Since the original version of vSAN was launched, I've always enjoyed Duncan Epping and Cormac Hogan books on vSAN.</p>



<p>Fortunately, Duncan and Cormac have alongside Pete Koehler have recently released their new book <a href="https://www.amazon.co.uk/dp/B0C3JL7B17">VMware vSAN 8.0 U1 Express Storage Architecture Deep Dive</a></p>



<h2 class="wp-block-heading" id="VMware_vSAN_80_U1_Express_Storage_Architecture_Deep_Dive">VMware vSAN 8.0 U1 Express Storage Architecture Deep Dive <a class="hash" href="#VMware_vSAN_80_U1_Express_Storage_Architecture_Deep_Dive" aria-label="Link to this section"></a></h2>



<p>This excellent book opens by giving a short history lesson of the SDDC and where vSAN came into place. It then expands onto all the features released, in which versions and when.</p>



<h2 class="wp-block-heading" id="vSAN_ESA_Requirements">vSAN ESA Requirements <a class="hash" href="#vSAN_ESA_Requirements" aria-label="Link to this section"></a></h2>



<p>The book does an excellent deep dive into all the possible pre-requisites and requirements for vSAN ESA. If you're a storage architect, or looking to adopt vSAN ESA, this section is crucial. With over 30 pages dedicated to the requirements, you can see just how through this book is.</p>



<h2 class="wp-block-heading" id="vSAN_ESA_Installation">vSAN ESA Installation <a class="hash" href="#vSAN_ESA_Installation" aria-label="Link to this section"></a></h2>



<p>While vSAN ESA can be installed in just a few clicks, this book is of course a deep dive which means you'll find out what's happening behind the scenes and more importantly, why something is happening.</p>



<h2 class="wp-block-heading" id="Architecture">Architecture <a class="hash" href="#Architecture" aria-label="Link to this section"></a></h2>



<p>A whole chapter of the book is dedicated to vSAN ESA Architecture. Some of the most important details regarding vSAN ESA are in this section. I particularly enjoyed reading about the various software components within vSAN and what they all do.</p>



<p>There is an excellent section called "Anatomy of a vSAN Read" and the same for writes, complete with diagrams. This really gets you involved in how vSAN works.</p>



<h2 class="wp-block-heading" id="vSAN_Operations">vSAN Operations <a class="hash" href="#vSAN_Operations" aria-label="Link to this section"></a></h2>



<p>As with any storage system, there are a number of "Day 2" operations required to keep everything healthy and also knowledge needed to know how to manage and provision storage for your workloads. Everything from health, testing, host management, shutdown, upgrades and a whole lot more is covered in this chapter.</p>



<h2 class="wp-block-heading" id="Advanced_Learning">Advanced Learning <a class="hash" href="#Advanced_Learning" aria-label="Link to this section"></a></h2>



<p>The book covers a few more advanced concepts which are a bit more niche but are seemingly rising in adoption. These include Stretched Clustering, Two node clusters and Cloud Native.</p>



<h2 class="wp-block-heading" id="Command_Line">Command Line <a class="hash" href="#Command_Line" aria-label="Link to this section"></a></h2>



<p>Finally, the book goes into detail around the CLI options to manage vSAN ESA with plenty of examples. Other commands are also discussed to help with troubleshooting such as then <strong>osfs-ls</strong> and <strong>cmmds-tool</strong>, both of which I had not used before.</p>



<p>The book is available now on <a href="https://www.amazon.co.uk/dp/B0C3JL7B17">Amazon</a> in physical and kindle format. I hope you enjoy it as much as I did and that it helps your planning while considering vSAN ESA for your project or to manage your existing deployments.</p>



<figure class="wp-block-image size-large is-resized"><img src="https://virtualg.uk/wp-content/uploads/2024/02/image-5.jpg" alt="" class="wp-image-15239" style="width:203px;height:auto" loading="eager" decoding="async"></figure>]]></content:encoded>
    </item>
    <item>
      <title>Official VMware Visio Stencils &amp; Icons – Update</title>
      <link>https://virtualg.uk/official-vmware-visio-stencils-icons-update/</link>
      <guid isPermaLink="true">https://virtualg.uk/official-vmware-visio-stencils-icons-update/</guid>
      <pubDate>Sat, 17 Feb 2024 18:08:16 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[For many years it concerned me that there has been no official Visio Stencils, Draw.io or other Icons for the documentation of VMware solutions. There are some unofficial icon…]]></description>
      <content:encoded><![CDATA[<p>For many years it concerned me that there has been no official Visio Stencils, Draw.io or other Icons for the documentation of VMware solutions.</p>



<p>There are some unofficial icon sets / VMware stencils out there and there are a few official product&nbsp;diagrams available but I've never found a complete set of VMware Visio stencils.</p>



<p>As a User Moderator of the Official VMware Forums (VMTN), I spend a lot of my time going through the forums. I found a post by <a href="https://twitter.com/tenthirtyam">Ryan Johnson</a>&nbsp;who has shared a batch of Visio icons and shapes!</p>



<p>What makes this so good is that they were the same ones used in the official VMware Validated&nbsp;Design Documentation!</p>



<p>Update: The GitHub repo is no longer available but I was directed to a fork by <a href="https://x.com/h0bbel" target="_blank" rel="noopener" title="Christian Mohn">Christian Mohn</a> (thank you) Read on for the new link.</p>



<h2 class="wp-block-heading" id="Free_VMware_Visio_Stencils">Free VMware Visio Stencils <a class="hash" href="#Free_VMware_Visio_Stencils" aria-label="Link to this section"></a></h2>



<p>I've taken screenshots of what is included in the new Visio files. Keep in mind that these are SDDC focused so you will find Compute, Network and Storage icons with a strong focus on the SDDC within the visio stencils vmware set.</p>



<figure class="wp-block-image"><img src="https://virtualg.uk/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons.jpg" alt="" class="wp-image-2751" data-full="/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons.jpg" loading="eager" decoding="async"></figure>



<figure class="wp-block-image"><img src="https://virtualg.uk/wp-content/uploads/2020/05/VMware-Visio-SDDC-Shapes.jpg" alt="" class="wp-image-2746" data-full="/wp-content/uploads/2020/05/VMware-Visio-SDDC-Shapes.jpg" loading="lazy" decoding="async"></figure>



<figure class="wp-block-image is-resized"><img src="https://virtualg.uk/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons-Example.jpg" alt="" class="wp-image-2747" style="width:840px;height:auto" data-full="/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons-Example.jpg" loading="lazy" decoding="async"></figure>



<figure class="wp-block-image is-resized"><img src="https://virtualg.uk/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons-Example-2.jpg" alt="" class="wp-image-2749" style="width:840px;height:auto" data-full="/wp-content/uploads/2020/05/VMware-Visio-SDDC-Icons-Example-2.jpg" loading="lazy" decoding="async"></figure>



<h2 class="wp-block-heading" id="Download_the_Free_VMware_Visio_files">Download the Free VMware Visio files <a class="hash" href="#Download_the_Free_VMware_Visio_files" aria-label="Link to this section"></a></h2>



<ul class="wp-block-list">
<li>The files have been moved from the VMTN forums to GitHub and are accessible <a href="https://github.com/h0bbel/vmware-stencils" target="_blank" rel="noopener" title="">here</a></li>



<li>To download the VMware Viso files, click the <strong>Code</strong> button, followed by <strong>Download Zip</strong></li>



<li><em>Note that these are now a few years old, but to the best of my knowledge they are the latest once released.</em></li>
</ul>



<a class="btn" href="https://github.com/h0bbel/vmware-stencils/archive/refs/heads/main.zip">Download VMware Visio Files Here</a>



<h2 class="wp-block-heading" id="Other_useful_downloads_and_guides">Other useful downloads and guides <a class="hash" href="#Other_useful_downloads_and_guides" aria-label="Link to this section"></a></h2>



<p>If you have found this post useful, consider joining my newsletter for updates to these Visio files and other useful downloads and guides &gt;&gt; <a href="https://virtualg.uk/subscribe/" title="Subscribe to the newsletter">Subscribe to the newsletter</a></p>]]></content:encoded>
    </item>
    <item>
      <title>VMware Explore – US – Top 5 Session Picks</title>
      <link>https://virtualg.uk/vmware-explore-us-top-5-session-picks/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-explore-us-top-5-session-picks/</guid>
      <pubDate>Fri, 21 Jul 2023 18:05:27 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[With VMware Explore (US - Las Vegas) starting August 21st, it is time to save your seats to ensure you get to see the breakout sessions you want to be involved in. Depending on…]]></description>
      <content:encoded><![CDATA[<p>With VMware Explore (US - Las Vegas) starting August 21st, it is time to save your seats to ensure you get to see the breakout sessions you want to be involved in.</p>



<p>Depending on which products you have as part of your infrastructure, and personal interests, everyone will have their own choices.</p>



<p>For me, I like to pick some deep dives into products I have and also a few sessions on products I am considering or simply have an interest in outside of the workplace.</p>



<p>So what are my top 5 picks for VMware Explore US 2023?</p>



<h2 class="wp-block-heading" id="Increasing_Availability_and_Resilience_with_VMware_vSAN_Stretched_Clusters_CEIB1099LV"><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB1099LV" target="_blank" rel="noreferrer noopener">Increasing Availability and Resilience with VMware vSAN Stretched Clusters  [CEIB1099LV]</a> <a class="hash" href="#Increasing_Availability_and_Resilience_with_VMware_vSAN_Stretched_Clusters_CEIB1099LV" aria-label="Link to this section"></a></h2>



<p>Availability and resilience are top of mind for everyone involved in providing a platform for business services. VMware offers a great solution to increase resilience and availability through the VMware vSAN stretched cluster functionality. Over the past few years, new features and enhancements have been introduced to vSAN stretched clusters to increase availability and resilience as well as improve operational efficiency. We will discuss a typical implementation, share best practices, and explain why vSAN Express Storage Architecture is preferred for VMware-based stretched cluster solutions.</p>



<p>Speakers: Duncan Epping &amp; Vivek Pamadi</p>



<p><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB1099LV" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB1099LV">More info..</a></p>



<h2 class="wp-block-heading" id="Whats_New_with_VMware_NVIDIA_AI-Ready_Enterprise_Platform_CEIB3051LV"><a rel="noreferrer noopener" href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB3051LV" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB3051LV" target="_blank">What's New with VMware + NVIDIA AI-Ready Enterprise Platform [CEIB3051LV]</a> <a class="hash" href="#Whats_New_with_VMware_NVIDIA_AI-Ready_Enterprise_Platform_CEIB3051LV" aria-label="Link to this section"></a></h2>



<p>NVIDIA and VMware have partnered to democratize AI/ML for all enterprises. VMware+NVIDIA AI-Ready Enterprise Platform delivers best-in-class AI/ML software, NVIDIA AI Enterprise, optimized and certified for the industry's leading enterprise workload platforms, VMware Cloud Foundation &amp; VMware vSphere. Join this talk to hear Justin Murray, Frank Denneman, and an NVIDIA speaker and learn more about this VMware &amp; NVIDIA AI initiative. Watch out for updates to this abstract for some new announcements.</p>



<p>Speakers: Justin Murray &amp; Frank Denneman</p>



<p><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB3051LV" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB3051LV" target="_blank" rel="noreferrer noopener">More info..</a></p>



<h2 class="wp-block-heading" id="Keep_the_Attackers_Out_Infrastructure_Security_Hardening_and_Auditing_CEIB1975LV"><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB1975LV" target="_blank" rel="noreferrer noopener">Keep the Attackers Out: Infrastructure Security Hardening and Auditing [CEIB1975LV]</a> <a class="hash" href="#Keep_the_Attackers_Out_Infrastructure_Security_Hardening_and_Auditing_CEIB1975LV" aria-label="Link to this section"></a></h2>



<p>Protecting IT infrastructure components from attacks and ransomware is different than protecting workloads. There are ways to use the security features built into VMware vSphere+ to harden an environment against attacks while also keeping it easy for IT staff to do their jobs and make compliance audits faster, too. Join us as we talk about what's new for infrastructure security, and how to incorporate those into design and implementation strategies so that your environment is secure in the face of changing threats.</p>



<p>Speakers: Bob Plankers &amp; Joshua Solomin</p>



<p><a rel="noreferrer noopener" href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB1975LV" target="_blank">More info..</a></p>



<h2 class="wp-block-heading" id="State_of_Union_for_VMware_Home_Labs_CODEB2757LV"><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CODEB2757LV" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CODEB2757LV" target="_blank" rel="noreferrer noopener">State of Union for VMware Home Labs [CODEB2757LV]</a> <a class="hash" href="#State_of_Union_for_VMware_Home_Labs_CODEB2757LV" aria-label="Link to this section"></a></h2>



<p>In this session, you will learn about all the latest and greatest options in building a VMware home lab for learning, development and testing purposes. In addition to the hardware and software build of material for a VMware home lab, we will also deep dive into all the different ways you can configure and leverage your home lab to run the latest VMware products and services, including VMware vSphere, VMware vSAN, VMware Cloud Foundation, VMware NSX, VMware Aria, and VMware Tanzu to just name a few. You will learn about the different techniques and tricks that will allow you to deploy and exercise the maximum number of products and/or feature workflows. This will be a session you do not want to miss if you are looking to expand your skillset or simply learn about new ways to leverage VMware software.</p>



<p>Speaker: William Lam</p>



<p><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CODEB2757LV" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CODEB2757LV" target="_blank" rel="noreferrer noopener">More info..</a></p>



<h2 class="wp-block-heading" id="Delivering_Application_Monitoring_Services_in_Cloud_CEIB2296LV"><a href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB2296LV&amp;search.product=1676049120523070MBtM" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB2296LV&amp;search.product=1676049120523070MBtM" target="_blank" rel="noreferrer noopener">Delivering Application Monitoring Services in Cloud [CEIB2296LV]</a> <a class="hash" href="#Delivering_Application_Monitoring_Services_in_Cloud_CEIB2296LV" aria-label="Link to this section"></a></h2>



<p>Every cloud offering needs complete end-to-end monitoring services for applications, whether they are in private, sovereign, hybrid or public cloud. For VMware Cloud Services Provider partners, VMware Aria Operations, either standalone or integrated into a cloud-smart multi-cloud solution with VMware Cloud Director, can deliver simple virtual data center monitoring and advanced application monitoring services.</p>



<p>Speakers: Amith Vijayanand &amp; Brandon Gordon</p>



<p><a rel="noreferrer noopener" href="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB2296LV&amp;search.product=1676049120523070MBtM" data-type="URL" data-id="https://event.vmware.com/flow/vmware/explore2023lv/content/page/catalog?tab.contentcatalogtabs=1627421929827001vRXW&amp;search=CEIB2296LV&amp;search.product=1676049120523070MBtM" target="_blank">More info..</a></p>



<h2 class="wp-block-heading" id="VMware_Explore_2023_Backpack_Reveal">VMware Explore 2023 Backpack Reveal <a class="hash" href="#VMware_Explore_2023_Backpack_Reveal" aria-label="Link to this section"></a></h2>



<p>If you're attending the US conference in person, be sure to pickup your backpack!</p>



<figure class="wp-block-embed is-type-video is-provider-youtube wp-block-embed-youtube wp-embed-aspect-16-9 wp-has-aspect-ratio"><div class="wp-block-embed__wrapper">
https://www.youtube.com/watch?v=8CXG1DfZog4
</div></figure>]]></content:encoded>
    </item>
    <item>
      <title>vSAN 8 – What’s New</title>
      <link>https://virtualg.uk/vsan-8-whats-new/</link>
      <guid isPermaLink="true">https://virtualg.uk/vsan-8-whats-new/</guid>
      <pubDate>Tue, 30 Aug 2022 12:59:00 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[vSAN was introduced in 2014, around 8 years ago. We've seen impressive features introduced to the product over the years from All-Flash, Deduplication, Encryption, File Services…]]></description>
      <content:encoded><![CDATA[<p>vSAN was introduced in 2014, around 8 years ago. We've seen impressive features introduced to the product over the years from All-Flash, Deduplication, Encryption, File Services and enhancements in how vSAN deals with failures and maintenance mode.</p>



<p>Since 2014 IT has evolved rapidly. No longer do we tend to run production workloads on spinning media. We also have better CPUs, better networking and even faster storage options with NVMe.</p>



<p>With all of this in mind, vSAN is evolving to meet today's and tomorrow's application requirements.</p>







<h2 id="A_New_vSAN_Architecture_%E2%80%93_ESA">A New vSAN Architecture - ESA <a class="hash" href="#A_New_vSAN_Architecture_%E2%80%93_ESA" aria-label="Link to this section"></a></h2>



<p>Express Storage Architecture, or ESA is an optional next-get storage architecture. You can use the new ESA on ESA-approved vSAN ReadyNodes, allowing you to take advantage of the latest technologies for those workloads that need the very best performance.</p>



<p>vSAN ESA is, like regular vSAN, built into the hypervisor, so there is no additional software to install.</p>



<h3 id="Reduced_TCO_with_vSAN_Express_Storage_Architecture">Reduced TCO with vSAN Express Storage Architecture <a class="hash" href="#Reduced_TCO_with_vSAN_Express_Storage_Architecture" aria-label="Link to this section"></a></h3>



<ul><li>vSAN 8 ESA allows for storage of data using RAID-6 but at the performance of RAID 1, thus making the most efficient use of storage space while having no negative performance.</li><li>The new architecture eliminates costly cache devices from vSAN nodes.</li><li>Furthermore, vSAN 8 ESA simplifies storage provisioning and other overheads.</li></ul>



<h3 id="vSAN_ESA_Eliminates_Cache_disks_and_Disk_groups">vSAN ESA Eliminates Cache disks and Disk groups <a class="hash" href="#vSAN_ESA_Eliminates_Cache_disks_and_Disk_groups" aria-label="Link to this section"></a></h3>



<p>In the regular (Original Storage Architecture) version of vSAN, we continue to use the concept of disk groups and cache devices.</p>



<p>Given the improvements in storage, particularly in the NVMe space, vSAN ESA introduces a new storage concept (for vSAN) of Storage Pools. Every storage device in a vSAN node will be used within the storage pool, instead of costly storage devices being reserved for cache etc.</p>







<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-29.png" alt="" class="wp-image-5739" loading="eager" decoding="async"></figure>



<h2 id="Migrating_to_vSAN_ESA_Enhanced_Storage_Architecture">Migrating to vSAN ESA (Enhanced Storage Architecture) <a class="hash" href="#Migrating_to_vSAN_ESA_Enhanced_Storage_Architecture" aria-label="Link to this section"></a></h2>



<p>If you're looking to migrate to vSAN 8 ESA, simply follow the 3 steps:</p>



<ul><li>Ensure your new vSAN ReadyNodes support vSAN ESA</li><li>Apply Advanced or Enterprise Licensing</li><li>Migrate your Virtual Machines with Storage vMotion without any downtime</li></ul>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-30.png" alt="" class="wp-image-5746" loading="lazy" decoding="async"></figure>



<h2 id="Key_architecture_changes_in_vSAN_ESA">Key architecture changes in vSAN ESA <a class="hash" href="#Key_architecture_changes_in_vSAN_ESA" aria-label="Link to this section"></a></h2>



<h3 id="vSAN_8_ESA_has_a_new_patented_Log-Structured_File_System">vSAN 8 ESA has a new patented Log-Structured File System. <a class="hash" href="#vSAN_8_ESA_has_a_new_patented_Log-Structured_File_System" aria-label="Link to this section"></a></h3>



<p>The new log structure is designed to ingest high levels of different IO sizes both small and large. This means that large quantities of data can be accepted with low latency.</p>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-32.png" alt="" class="wp-image-5761" loading="lazy" decoding="async"></figure>







<p> This enables:</p>



<ul><li>Reduced I/O amplification</li><li>Lower overhead</li><li>Futureproof against new storage hardware</li><li>High-performance snapshots</li></ul>



<h3 id="New_Data_Structure">New Data Structure <a class="hash" href="#New_Data_Structure" aria-label="Link to this section"></a></h3>



<p>vSAN ESA also ships with an Optimized Data Structure with:</p>



<ul><li>Improved Space Efficiency</li><li>High Scalability, removes the ned for "disk groups"</li><li>Device-level Performance</li><li>A Single-tier Architecture</li></ul>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-33.png" alt="" class="wp-image-5763" loading="lazy" decoding="async"></figure>



<h3 id="Erasure_Coding_with_the_same_performance_as_RAID-1">Erasure Coding with<strong> </strong>the same performance as RAID-1 <a class="hash" href="#Erasure_Coding_with_the_same_performance_as_RAID-1" aria-label="Link to this section"></a></h3>



<p>As writes are ingested into the system, they are committed to the performance leg (as mirrored writes), maintaining low latency for the workload.</p>



<p>Once the performance log fills up, the data will be written efficiently to the capacity leg with the correct number of stripes.</p>



<p>This allows us to use RAID-6 for best data protection and capacity utilisation but with the better performance of RAID-1</p>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-34.png" alt="" class="wp-image-5769" loading="lazy" decoding="async"></figure>



<h3 id="RAID-5_Cluster_Aware_Space_Efficiency">RAID-5 Cluster Aware Space Efficiency <a class="hash" href="#RAID-5_Cluster_Aware_Space_Efficiency" aria-label="Link to this section"></a></h3>



<p>In vSAN ESA, small clusters have an improved space efficiency mechanism which results in:</p>



<ul><li>4+1 scheme using 1.25x capacity for resilient data storage</li><li>2+1 scheme using 1.5x capacity for resilient data storage</li></ul>



<p>The RAID-5 scheme dynamically adjusts based on the cluster size:</p>



<ul><li>4+1 is used with 6 or more hosts</li><li>2+1 is used when there are 3-5 hosts</li></ul>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-35.png" alt="" class="wp-image-5775" loading="lazy" decoding="async"></figure>



<h3 id="Highly_Efficient_Data_Compression">Highly Efficient Data Compression <a class="hash" href="#Highly_Efficient_Data_Compression" aria-label="Link to this section"></a></h3>



<p>Data compression is enabled and disabled on a per-storage policy basis (previously cluster level) and is now enabled by default.</p>



<p>Data compression now occurs very high in the storage stack. This minimises the CPU and Network cost which can now be used for other tasks.</p>



<p>Compression rates are at a very fine granularity and efficiency is up to 8:1 compression per 1KB data block.</p>



<figure class="wp-block-image size-full"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-36.png" alt="" class="wp-image-5780" loading="lazy" decoding="async"></figure>



<h3 id="Adaptive_Network_Traffic_Shaping">Adaptive Network Traffic Shaping <a class="hash" href="#Adaptive_Network_Traffic_Shaping" aria-label="Link to this section"></a></h3>



<p>When there is network congestion in vSAN ESA, the new Intelligent I/O Management layer ensures a balance between VM I/O and resync I/O. </p>



<p>This will ensure a network link will not be saturated with vSAN resync traffic, ensuring bandwidth is available for VMs at all times.</p>



<p>This is dynamically adjusted on a per-host basis rather than set at the cluster level.</p>



<figure class="wp-block-image size-full"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-37.png" alt="" class="wp-image-5786" loading="lazy" decoding="async"></figure>



<h2 id="vSAN_8_%E2%80%93_Updates_to_Traditional_vSAN">vSAN 8 - Updates to Traditional vSAN <a class="hash" href="#vSAN_8_%E2%80%93_Updates_to_Traditional_vSAN" aria-label="Link to this section"></a></h2>



<h3 id="Proactive_Insights_for_Limited_Connectivity">Proactive Insights for Limited Connectivity <a class="hash" href="#Proactive_Insights_for_Limited_Connectivity" aria-label="Link to this section"></a></h3>



<div class="code"><div class="code-bar"><span>Text</span><button type="button" class="copy">Copy</button></div><pre class="shiki shiki-themes github-light github-dark" style="--shiki-light:#24292e;--shiki-dark:#e1e4e8;--shiki-light-bg:#fff;--shiki-dark-bg:#24292e" tabindex="0"><code><span class="line"><span>Applies to both vSAN 8 OSA (Traditional vSAN) and the new vSAN 8 ESA</span></span></code></pre></div>



<p>Proactive notifications will now work even if you're not enrolled in the CEIP.</p>



<p>As long as your vCenter Server is online, there is now improved health awareness for the environment, even when not enrolled in CEIP.</p>



<figure class="wp-block-image size-large"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-38.png" alt="" class="wp-image-5793" loading="lazy" decoding="async"></figure>







<h3 id="Increases_to_cachebuffer_layers">Increases to cache/buffer layers <a class="hash" href="#Increases_to_cachebuffer_layers" aria-label="Link to this section"></a></h3>



<p>In vSAN 8 VMware has increased the logical write buffer size to 1.6TB from 600GB. This is meaningful because we're now able to ingest larger amounts of data at burse rate performance.</p>



<p>Furthermore, this reduces the I/O demand on the capacity tier.</p>



<p>An on-disk upgrade will be required to use this new capability.</p>



<figure class="wp-block-image size-full"><img src="https://virtualg.uk/wp-content/uploads/2022/08/image-39.png" alt="" class="wp-image-5799" loading="lazy" decoding="async"></figure>



<h2 id="Download_Media_Release_Notes_and_Documentation">Download Media, Release Notes and Documentation <a class="hash" href="#Download_Media_Release_Notes_and_Documentation" aria-label="Link to this section"></a></h2>



<p>vSAN 8 is now available to download from the VMware portal <a href="https://customerconnect.vmware.com/downloads/info/slug/datacenter_cloud_infrastructure/vmware_vsan/8_0" data-type="URL" data-id="https://customerconnect.vmware.com/downloads/info/slug/datacenter_cloud_infrastructure/vmware_vsan/8_0" target="_blank" rel="noreferrer noopener">here</a></p>



<p>You can also <a href="https://twitter.com/virtualg_uk" data-type="URL" data-id="https://twitter.com/virtualg_uk">foll</a><a href="https://twitter.com/virtualg_uk" data-type="URL" data-id="https://twitter.com/virtualg_uk" target="_blank" rel="noreferrer noopener">ow me on Twitter</a> for instant updates.</p>



<p>For the latest in <a href="https://virtualg.uk/vmware-vsphere-8--whats-new" data-type="URL" data-id="https://virtualg.uk/vmware-vsphere-8--whats-new" target="_blank" rel="noreferrer noopener">vSphere 8</a>, be sure to check the <a href="https://virtualg.uk/vmware-vsphere-8--whats-new" data-type="URL" data-id="https://virtualg.uk/vmware-vsphere-8--whats-new" target="_blank" rel="noreferrer noopener">recent blog post</a>.</p>]]></content:encoded>
    </item>
    <item>
      <title>VMware Solutions – End of Support in 2022</title>
      <link>https://virtualg.uk/vmware-solutions-end-of-support-in-2022/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-solutions-end-of-support-in-2022/</guid>
      <pubDate>Tue, 07 Dec 2021 23:03:55 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[This is a quick post to highlight some of VMware's most used software which will no longer be supported in 2022. Software releases drop out of support all the time and it's easily…]]></description>
      <content:encoded><![CDATA[<p>This is a quick post to highlight some of VMware's most used software which will no longer be supported in 2022.</p>
<p>Software releases drop out of support all the time and it's easily missed to be sure to check them frequently. A quick search of this page will identify some of the core VMware solutions sieht support aspiring within the next 12 months, enabling you to prepare ahead of time for upgrades.</p>
<p>The most notable solutions on this list are ESXi and vCenter Server 6.5 and 6.7 which are commonly deployed at this time.</p>
<p><a href="https://virtualg.uk/upgrade-vcenter-server-from-6-7to-7-0/" target="_blank" rel="noopener">Upgrade vCenter Server to 7.0</a></p>
<p><a href="https://virtualg.uk/upgrade-esxi-6-7-to-7-0-lifecycle-manager-vlm/" target="_blank" rel="noopener">Upgrade ESXi to 7.0</a></p>
<div class="table"><table width="408">
<tbody>
<tr>
<td style="width: 296px;" width="307">App Volumes 4</td>
<td style="width: 105px;" width="101">14/01/2022</td>
</tr>
<tr>
<td style="width: 296px;">NSX for vSphere 6.4</td>
<td style="width: 105px;">16/01/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Tanzu Kubernetes Grid 1.2</td>
<td style="width: 105px;">31/01/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Automation Standard Plus 8.3</td>
<td style="width: 105px;">04/02/2022</td>
</tr>
<tr>
<td style="width: 296px;">HCX 4.0.0</td>
<td style="width: 105px;">23/02/2022</td>
</tr>
<tr>
<td style="width: 296px;">Horizon 7.10 ESB</td>
<td style="width: 105px;">17/03/2022</td>
</tr>
<tr>
<td style="width: 296px;">Dynamic Environment Manager 9.11</td>
<td style="width: 105px;">17/03/2022</td>
</tr>
<tr>
<td style="width: 296px;">Dynamic Environment Manager 9.9</td>
<td style="width: 105px;">17/03/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Tanzu Kubernetes Grid 1.3</td>
<td style="width: 105px;">31/03/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Cloud Director 10.1</td>
<td style="width: 105px;">09/04/2022</td>
</tr>
<tr>
<td style="width: 296px;">vCloud Usage Meter 4.4</td>
<td style="width: 105px;">04/05/2022</td>
</tr>
<tr>
<td style="width: 296px;">HCX 4.1.0</td>
<td style="width: 105px;">15/06/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations Manager 8.1.1</td>
<td style="width: 105px;">09/07/2022</td>
</tr>
<tr>
<td style="width: 296px;">App Volumes 4 2006</td>
<td style="width: 105px;">09/07/2022</td>
</tr>
<tr>
<td style="width: 296px;">HCX 4.2.0</td>
<td style="width: 105px;">05/08/2022</td>
</tr>
<tr>
<td style="width: 296px;">Dynamic Environment Manager 10 2006</td>
<td style="width: 105px;">11/08/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Cloud Foundation 4.1</td>
<td style="width: 105px;">24/08/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Cloud Foundation 4.2</td>
<td style="width: 105px;">24/08/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Cloud Foundation 4.3</td>
<td style="width: 105px;">24/08/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Automation 7.6</td>
<td style="width: 105px;">01/09/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 7.6</td>
<td style="width: 105px;">01/09/2022</td>
</tr>
<tr>
<td style="width: 296px;">App Volumes 2.18 (ESB)</td>
<td style="width: 105px;">16/09/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Tanzu Kubernetes Grid 1.4</td>
<td style="width: 105px;">30/09/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Network Insight 6.0.0</td>
<td style="width: 105px;">13/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Network Insight 6.1.0</td>
<td style="width: 105px;">13/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">ESXi 6.5</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">ESXi 6.7</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vCenter Server 6.5</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vCenter Server 6.7</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vSAN 6.5, 6.6</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vSAN 6.7</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">App Volumes 4 2009</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">Dynamic Environment Manager 10 2009</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">Horizon 7.13</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">Realize Automation 8.2</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">Realize Automation 8.3</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">Realize Automation 8.4</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Automation 8.5</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Automation 8.6</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Log Insight 8.2</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Log Insight 8.3</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Log Insight 8.4</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Log Insight 8.6</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Network Insight 5.3</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations 8.2</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations 8.3</td>
<td style="width: 105px;">15/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations 8.4</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations 8.5</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Operations 8.6</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 8.2</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 8.3</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 8.4</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 8.5</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Orchestrator 8.6</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.2</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.3</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.4</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.4.1</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.6</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Suite Lifecycle Manager 8.6.1</td>
<td style="width: 105px;">31/10/2022</td>
</tr>
<tr>
<td style="width: 296px;">vRealize Automation 8.6.1</td>
<td style="width: 105px;">19/11/2022</td>
</tr>
<tr>
<td style="width: 296px;">VMware Tools 10.2.x</td>
<td style="width: 105px;">14/12/2022</td>
</tr>
<tr>
<td style="width: 296px;">Fusion 12</td>
<td style="width: 105px;">22/12/2022</td>
</tr>
<tr>
<td style="width: 296px;">Workstation 16 Pro and Workstation 16 Player</td>
<td style="width: 105px;">22/12/2022</td>
</tr>
</tbody>
</table></div>

<p>You can find the complete lifecycle matrix <a href="https://lifecycle.vmware.com/" target="_blank" rel="noopener">here</a></p>]]></content:encoded>
    </item>
    <item>
      <title>VMware vSphere 7 Update 3 – What’s new?</title>
      <link>https://virtualg.uk/vmware-vsphere-7-update-3-whats-new/</link>
      <guid isPermaLink="true">https://virtualg.uk/vmware-vsphere-7-update-3-whats-new/</guid>
      <pubDate>Tue, 28 Sep 2021 16:00:54 +0000</pubDate>
      <dc:creator><![CDATA[Graham Barker]]></dc:creator>
      <description><![CDATA[It's only been around 6 months since vSphere 7 Update 2 was announced. Today VMware has announced new functionality in update 3. If you're looking for all the best bits of vSphere…]]></description>
      <content:encoded><![CDATA[<p>It's only been around 6 months since vSphere 7 Update 2 was announced. Today VMware has announced new functionality in update 3.</p>
<p>If you're looking for all the best bits of vSphere 7 Update 2, check <a href="https://virtualg.uk/vmware-vsphere-7-update-2-whats-new-hit-lots" target="_blank" rel="noopener">my in-depth post here.</a></p>
<p>You'll also notice that I publish these posts out really early, if you'd like to be notified as soon as they are published, <a href="https://virtualg.uk/subscribe/" target="_blank" rel="noopener">subscribe to my free mailing list</a> and you'll be one of the first to find out about the latest in vSphere.</p>
<h1>vSphere Lifecycle, Upgrades and Patching</h1>
<h2 id="SD_card_guidance">SD card guidance <a class="hash" href="#SD_card_guidance" aria-label="Link to this section"></a></h2>
<p>VMware has recently explained their stance on using SD cards on production ESXi hosts.</p>
<p>The summary of these discussions is:</p>
<ul>
 	<li>SD cards &amp; USB devices are unreliable over the long term.</li>
 	<li>The ESX-OSData partition should be stored on a local, reliable persistent storage device.</li>
 	<li>ESXi 7 has a minimum storage requirement of 32GB.</li>
 	<li>Going forward, SD cards and USB boot devices when used for ESXi will generate a warning and run in "degraded" mode.</li>
</ul>
<p>The degraded mode error message is "<em>ALERT: No persistent storage available for system logs and data. ESX is operating with limited system storage space, logs and system data will be lost on reboot "</em></p>
<p>VMware recommended using a persistent, local storage device. Options include SSD, <a href="https://www.dell.com/support/manuals/en-us/boss-s-1/boss_s1_ug_publication" target="_blank" rel="noopener">BOSS</a> card, PCI storage device etc</p>
<p>For more information on this issue, please see the <a href="https://core.vmware.com/resource/esxi-system-storage-faq" target="_blank" rel="noopener">official FAQ page</a></p>
<h2 id="vSphere_Lifecycle_Manager_Improvements">vSphere Lifecycle Manager Improvements <a class="hash" href="#vSphere_Lifecycle_Manager_Improvements" aria-label="Link to this section"></a></h2>
<p>vLCM now supports the editing of depots including the ability to manage patch, update and recall objects. You'll also be able to delete objects from the depot.</p>
<p>This functionality is available only via the API at this time but will be introduced into the UI later.</p>
<p>vSAN compatibility checks now expand to disk compatibility. This means that vLCM will check installed drive firmware against the official vSAN HCL.</p>
<p>Staying with vSAN, vLCM now also manages standalone vSAN witness nodes. Now vLCM will be able to patch the witness node for vSAN (if you have one) saving further time when patching vSAN clusters. This is not yet supported for shared vSAN witness nodes.</p>
<h2 id="VMware_Cloud_Services_%E2%80%93_vCenter_Upgrades">VMware Cloud Services - vCenter Upgrades <a class="hash" href="#VMware_Cloud_Services_%E2%80%93_vCenter_Upgrades" aria-label="Link to this section"></a></h2>
<p>If you're a VMware Cloud on AWS customer, you'll be happy to see reduced downtime for vCenter Server upgrades:</p>
<ul>
 	<li>As usual, a new VCSA is created a part of the upgrade process</li>
 	<li>Database and configuration is copied over to the new VCSA and synchronised up.</li>
 	<li>The VCSA switchover process started and the VCSA services on the new VCSA are started - This is the only downtime period.</li>
</ul>
<h1>Resource Management</h1>
<p>VMware has made a useful update to resource management if you utilise persistent memory features.</p>
<p>There are now new performance statistics for persistent memory, available directly from the vSphere UI:</p>
<figure><img class="alignnone size-full wp-image-3641" src="https://virtualg.uk/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0003.jpg" alt="" width="897" height="500" data-full="/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0003.jpg" loading="eager" decoding="async"></figure>
<h2 id="Maintenance_Mode_and_Workload_Placement">Maintenance Mode and Workload Placement <a class="hash" href="#Maintenance_Mode_and_Workload_Placement" aria-label="Link to this section"></a></h2>
<p>vSphere 7 has already improved DRS and vMotion but this update 3 release improves on these further:</p>
<ul>
 	<li>Continued improvements to DRS and vMotion</li>
 	<li>Significant time savings when upgrading ESXi hosts</li>
 	<li>Improvements of the reliability of maintenance mode</li>
 	<li>Better placement of workloads, when enabling maintenance mode</li>
</ul>
<h2 id="vCLS_Virtual_Machines">vCLS Virtual Machines <a class="hash" href="#vCLS_Virtual_Machines" aria-label="Link to this section"></a></h2>
<p>vCLS has recently taken some services out of vCenter server and enabled them at the cluster level via small virtual machines.</p>
<p>Improvements on the vCLS VMs include:</p>
<ul>
 	<li>The ability to choose which datastores vCLS VMs are deployed to</li>
 	<li>Host affinity for vCLS</li>
 	<li>The removal of brackets within the vCLS agent VM names for better support</li>
</ul>

<figure><img class="alignnone size-full wp-image-3644" src="https://virtualg.uk/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0004.png" alt="" width="569" height="273" data-full="/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0004.png" loading="lazy" decoding="async"></figure>
<h2 id="Improved_Guest_Operating_System_Feature_Support">Improved Guest Operating System Feature Support <a class="hash" href="#Improved_Guest_Operating_System_Feature_Support" aria-label="Link to this section"></a></h2>
<p>With vSphere 7 Update 3 there are the following updates:</p>
<ul>
 	<li>Full support for cloud-init</li>
 	<li>Guest Data Publisher</li>
 	<li>UEFI 2.4 support for virtual machines</li>
 	<li>AMD support for VBS</li>
</ul>


<h2 id="Updates_to_Precision_Time_Keeping">Updates to Precision Time Keeping <a class="hash" href="#Updates_to_Precision_Time_Keeping" aria-label="Link to this section"></a></h2>
<p>An earlier release of vSphere introduced PTP (Precision Time Protocol for more accurate time support.</p>
<p>PTP now supports the ability to add traditional NTP servers as a fallback, should the PTP service no longer be operable.</p>
<p>Time is key to a successful vSphere architecture, so this is a welcomed change to the initial PTP implementation in vSphere.</p>
<figure><img class="alignnone size-full wp-image-3645" src="https://virtualg.uk/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0005.png" alt="" width="937" height="622" data-full="/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0005.png" loading="lazy" decoding="async"></figure>
<h1>Core Storage Enhancements</h1>
<p>There are no major improvements to core storage in this announcements, but if you're using or plan to use NVMe or vVOLs, you might be interested in these:</p>
<ul>
 	<li>In vSphere 7U3 you can now access local NVMe devices over TCP/IP. This is in addition to FC and RDM access which was previously announced.</li>
 	<li>VMFS-6 and NFS now supports 128 attached ESXi hosts</li>
 	<li>For those using vVols, the snapshots are now batched processed for performance improvements</li>
</ul>

<h1>vSphere &amp; NSX integration</h1>
<p>NSX and vSphere are now integrated into a Single Pane of Glass. This is a much-welcomed improvement for NSX-T customers.</p>
<figure><img class="alignnone size-full wp-image-3646" src="https://virtualg.uk/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0006.jpg" alt="" width="789" height="486" data-full="/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0006.jpg" loading="lazy" decoding="async"></figure>
<h1>vSphere Management with PowerCLI</h1>
<p>PowerCLI 12.4 is coming soon. This will include</p>
<ul>
 	<li>Directly invoke REST API via PowerCLI (New API Bindings)</li>
 	<li>New Powershell based certificate management cmdlets</li>
 	<li>Additional support for vSAN via PowerCLI</li>
</ul>

<h1></h1>
<h1>vSphere With Tanzu and Kubernetes</h1>
<p>If your organization develops software / ML or AI of any kind, you'll probably have heard about containers and Kubernetes to some degree.</p>

<h2 id="Streamlined_Network_Setup_for_Kubernetes_Clusters">Streamlined Network Setup for Kubernetes Clusters <a class="hash" href="#Streamlined_Network_Setup_for_Kubernetes_Clusters" aria-label="Link to this section"></a></h2>
<p>VMware has improved the setup and support for existing environments when it comes to the network provisioning of Namespaces and Supervisor clusters.</p>
<p>What's changed here is that VMware has created a new DHCP network mode which integrates directly into your existing environment, you're able to specify the network and DHCP server addresses to use for both your workload and management clusters.</p>
<h2 id="Improved_Error_Messages">Improved Error Messages <a class="hash" href="#Improved_Error_Messages" aria-label="Link to this section"></a></h2>
<p>VMware has made error messages clearer and more detailed. This is to help with troubleshooting Tanzu related issues.</p>
<p>Furthermore, vSphere 7 U3 also checks Tanzu configuration for issues and reports these more cleanly.</p>
<figure><img class="alignnone size-full wp-image-3639" src="https://virtualg.uk/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0001.png" alt="" width="871" height="303" data-full="/wp-content/uploads/2021/09/VIRTUALG.UK-vSphere7-U3-0001.png" loading="lazy" decoding="async"></figure>
<h1>Further Resources</h1>
<p>If you are interested in being the <strong>first to find out about vSphere updates</strong>, be sure to <a href="https://virtualg.uk/subscribe/" target="_blank" rel="noopener">subscribe to my free mailing list</a> for immediate access to these articles which I post early on release day.</p>
<p>For more information on vSphere 7, please find the below articles:</p>
<p><a href="https://virtualg.uk/vmware-vsphere-7-0-update-1-whats-coming-soon/">What's new in vSphere 7 Update 1</a></p>
<p><a href="https://virtualg.uk/vmware-vsphere-7-update-2-whats-new-hit-lots/">What's new in vSphere 7 Update 2</a></p>
<h2 id="Download_vSphere_7_U3"><strong>Download vSphere 7 U3</strong> <a class="hash" href="#Download_vSphere_7_U3" aria-label="Link to this section"></a></h2>
<p>Once released, <a href="https://customerconnect.vmware.com/en/downloads/info/slug/datacenter_cloud_infrastructure/vmware_vsphere/7_0" target="_blank" rel="noopener">vSphere 7 Update 3 will be available to download here</a></p>
<p>And the full <a href="https://docs.vmware.com/en/VMware-vSphere/7.0/rn/vsphere-esxi-703-release-notes.html" target="_blank" rel="noopener">release notes should be available here</a></p>]]></content:encoded>
    </item>
  </channel>
</rss>
